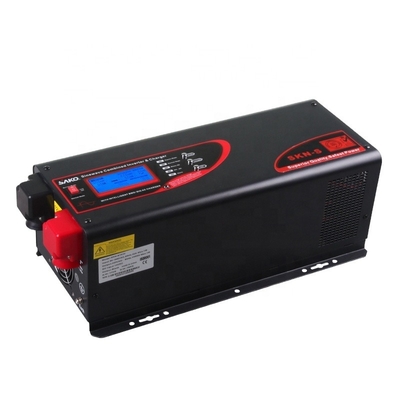

Name: Household Appliance 4000W Low Frequency Pure Sine Wave Home Inverter With AC Charger Built Inside
Brand: Household Appliance 4000W Low Frequency Pure Sine Wave Home Inverter With AC Charger Built Inside
SKU: SKN-S 4KW
Price: 364.00 USD
Availability: InStock
Rating: 5 (101 reviews)

Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat

Eigenschaften

Technische Daten

Model Number: SKN-S 4KW

Type: DC/AC Inverters

Output Type: Single

Output Current: 17.39A

Output Frequency: 50Hz/60Hz

Size: 608 x 184 x x181mm

Weight: 34KG

Certificate: CE

Product name: low frequency inverter

Application: Home Appliance

Warranty: 1 Year

Protection: Overload Overcharge Overvoltage Overcurrent

Color: Black

Output waveform: Pure Sine Wave Output

Rated power: 4000W

Display: LED

Peak power: 3 Times

OEM: Accepted

Grundinformation

Zertifizierung: CE

Model Number: SKN-S 4KW

Zahlung und Versand AGB

Packaging Details: carton + packing tape

Supply Ability: 300 Piece/Pieces per Month

Produkt-Beschreibung

4000W Manufacturer moldified sine wave Home Inverter

This is a hybrid off-grid low frequency solar inverter(with Intelligent Big AC Charger / big transformer).

Equipped with big transfomer, Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, Its also have opposite connection protection.

Product Description

1. Big LCD display
2. Over load protection
3. Short circuit protection
4. Over temperature protection
5. Microprocessor Control Guarantees High Reliability
6. With Intelligent Big AC Charger
7. 4 Step Progressive Charging
8. User Select 4 Types Battery
9. User Setting Battery Charge Current
10.Automatically And Swiftly Line To Battery Switchover
11.High Efficiency Using Line-interactive Circuit Technology
12.Easy To Install&Easy To Use

MODEL	SKN-S 1KW	SKN-S 2KW	SKN-S 3KW	SKN-S 4KW	SKN-S 5KW	SKN-S 6KW
SPECIFICATION
DC INPUT
Input Voltage(Vdc)	12V/24V		24V/48V		48V
Min DC start voltage(Vdc)	10V/20V		20V/40V		40V
AC Bypass
Nominal Input Voltage	2 Phase L1:120Vac+L2:120Vac+N Line
Input AC Range(Vac)	90-265V
Frequency Range(HZ)	57Hz -65Hz for 60Hz
Input Frequency(Hz)	60Hz (Auto detection)
Bypass Output Voltage(Vac)	same as input voltage
Bypass Output Frequency(Hz)	same as input frequency
Max Bypass Overload Current	10A	20A	30A	40A	50A	60A
AC Efficiency	> 95%
Transfer Time(ms)	20ms (typical)
CHARGER
Charge mode Input Voltage Range	95~255Vac
Automatic Charge mode	Three stage charge mode:Boost CC (constant current stage) → Boost CV (constant voltage stage) → Float (constant voltage stage)
Nominal Charge Voltage	According to the battery type setup
Charge Current(A)	20A/27A/40A/55A
Charge boost voltage(v)	According to the battery type setup( 12V BAT:14-15.5v 24V BAT: 28-31V 48V BAT:56-62V 96V BAT:112-124V)
Charge Floating Voltage(V)	According to the battery type setup (12V BAT: 13.3-13.7, 24v BAT: 26.6-27.6, 48V BAT:53.2-55.2V 96V BAT:106.4-110.4V)
Over Charge Protection	Bat. V ≥15.7Vdc, beeps 0.5s every 1s & fault after 60s (15.7 for 12v, 31.4V for 24V, 62.8V for 48V, 125.6V for 96V)
Charger Short Circuit Protection	Circuit breaker
(INVERTER)
Capacity(VA)	1000	2000	3000	4000	5000	6000
Output Power(W)	1000	2000	3000	4000	5000	6000
Power Factor(PF)	1
Output Voltage	Single phase:240Vac /2 phase:120Vac+120Vac (Sine wave)
Output Frequency	60 0.3Hz(auto tracking main first power connection)
Wave	pure sine wave
Inversion Efficiency	>88%
Over load capacity	(110%<load<125%) 10%: Fault (shutdown output) after 15 minutes; (125%<load<150%) 10%: Fault (shutdown output) after 60s; Load>150% 10%: Fault (shutdown output) after 20s
Low Battery Alarm	10.5Vdc 0.3Vdc for 12V battery, 21.0Vdc 0.6Vdc for 24V battery, 42.0Vdc 1.2Vdc for 48V battery, 84.0Vdc 2.4Vdc for 96V batter
Power saver	Load 25W (Enabled on “P/S auto” setting of Remote control)
AMBIENT
Noise(dB)	60dB max.
Temperature	0°C to 40°C
Humidity	5% to 95%
Sea Level(m)	1500
DIMENSION
Product size L×W×H(mm)	L438mmW184mmH181mm			L608mmW184mmH181mm
Packing size	L590mmW312mmH295mm			L808mmW360mmH352mm
Weight(Kg)	16.5/17.5	19/20	24/25	34/37	39/42	42/45
