Startseite /Produkte/Batterie-Leistungsumrichter/8-40V To 12V 1A 3A 6A Boost Male High Quality DC Converter Car Power Supply With CE RoHS 64*57*22mm

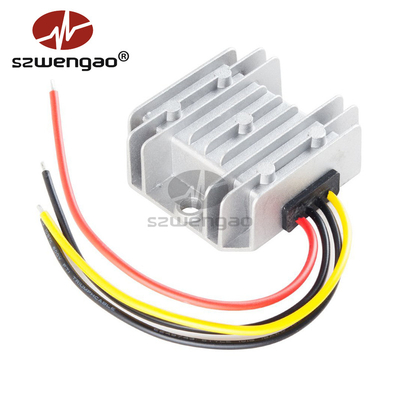

8-40V To 12V 1A 3A 6A Boost Male High Quality DC Converter Car Power Supply With CE RoHS 64*57*22mm

1 Unit
MOQ
8-40V To 12V 1A 3A 6A Boost Male High Quality DC Converter Car Power Supply With CE RoHS 64*57*22mm
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Model Number: WG8-40S1201, WG8-40S1203, WG8-40S1206Z
Type: DC/DC Converters
Output Type: Single
Output Current: 1A, 3A,6A
Output Frequency: -
Size: 64*57*22mm
Weight: 110g
Input voltage: 8-40V DC
Output voltage: 12V DC
Output power: 12W - 72W
Working temperature: -40°C to +80°C
Waterproof: IP68
Certificated: CE RoHS
Warranty: 1 year
Grundinformation
Zertifizierung: CE RoHS
Model Number: WG8-40S1201, WG8-40S1203, WG8-40S1206Z
Zahlung und Versand AGB
Packaging Details: All items packaged by box, then by large outer cartons.
Produkt-Beschreibung
COMPANY PROFILE
Shenzhen Wengao Electronic Co., Ltd. is committed to being a leading provider of power solutions, including AC-DC power supplies, DC-DC converters, high voltage power supplies and battery chargers. SZWENGAO offers the widest range of power products available from unrivalled technical and customer support, and cost reduction programmes. SZWENGAO reduces the production and running costs of your equipment enabling you to gain a competitive advantage. There are over 500 models in our product line designed to meet the requirements of a broad range of applications. Our products are sold to all over the world, like USA, Japan, Europe, Australia, Russian, Canada, Korea etc.

12V/24V to 5V
12V/24V to 6V
24V to 12V
24V to 13.8V
24V to 19V
DC-DC Buck Converters
36V to 12V
48V to 12V
48V to 13.8V
48V to 24V
60V to 12V
36V/48V to 5V
72V to 12V



DC-DC Boost Converters
12V to 19V
12V to 24V
12V to 28V
12V to 36V
12V to 48V
24V to 48V




DC-DC Boost-Buck Converters
5-36V to 12V
8-40V to 12V
8-40V to 13.8V
9-40V to 24V
9-36V to 19V
10-60V to 12V
18-36V to 24V
10-60V to 24V
10-60V to 36V

Isolated DC-DC Module
36-75V to 5V
36-75V to 12V
36-75V to 24V
50-90V to 12V

1. Non-isolated between input and output.

3. 100% full stable output current.

5. Waterproof level IP68.

7. Die-cast aluminum shell, epoxy potting.

9. High efficiency, Up to 100,000 hours of service life.


2. Design meeting ROHS/CE.

4. 100% full load burn-in test.

6. Internal capacitor: NCC & NICHICON (high reliability).

8. Cooling by free air convection.

10. LV, OV, OT and OL protections.

ALUMINUM SHELL

Three-sided heat sinks, better heat conduction effect.

ORGANIC SILICA GEL POTTING

IP68 protection grade, waterproof, dustproof and anti-seismic.

SMT PROCESS

Products is smaller and lighter. High reliability and strong anti-vibration ability. Low solder joint defect rate.

IMPORTED COMPONENTS

Import of original industrial chips & capacitances ( such as TI, NCC, NICHICON and so on).

GIFT BOX

50PCS/6.7KGS/CTN/38*25*15CM

APPLICATIONS

Rail transit, communications, electrical equipment, ships, renewable energy, LED Marketplaces and so on..
NOTICE
A. Be sure to make the correct connection according to the product nameplate and the wire marking. The wrong connection will cause the damage of the product, and even result in the danger of fire and so on.
B. To ensure safety, a fuse should be connected to the input terminal to prevent the permanent damage caused by wrong connection of positive and negative pole and over-voltage. Some products have been installed the fuse before leaving the factory, and due to the current reason, you’d better match fuse for those products with no fuse.
BEST QUALITY
We have our own professional testing equipment, all products will strictly selected and tested by QC department. Imported components. 1-3 years warranty.
